| Theory: | Vacuum Pump | Structure: | Diaphragm Pump |
|---|---|---|---|
| Usage: | Air | Power: | Electric |
| Standard Or Nonstandard: | Nonstandard | Fuel: | Electric Power, Solar, Battery |
| Pressure: | Low Pressure | Application: | Wrist Blood Pressure Monitor,Medical Device Mainly Used For Electronic Sphygmomanometer, Massage, Blood Pressure Monitors, Eye Nanny, Fish Tanks, Beer And Other Equipment Products. |

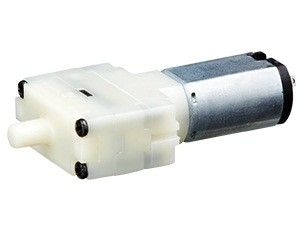

Model: KMP08C-3A
Characteristic
1. Rated Voltage DC3.0V
2. Range of Operating Voltage DC2.0~ 3.2 V
3. Rated Current <300mA
4. Inflation Time <11sec (From 0 to 300mmHg in a 50cc tank)
5. Power Consumption 0.9W
6. Fluid Applied Air
7. Oulet Port O.D. 3.1mm
8. Air Flow >0.5LPM
9. Maximum Pressure >350mmHg
10. Leakage Max 3mmHg/min (From 300mmHg at 50cc tank)
11. Restart Voltage 2.0V
12. Noise <65dB (30cm away)
13. Life 30,000 times (on 7sec,off 7sec as one cycle)
KMP08C-3A outline figure
Electric parameters
| MODEL | Outward appearance size | Fixed quantity voltage | Fixed quantity electric current | Current capacity | Most tremendous pressure | Noise | Rated Lifetime |
| mm | DC(V) | mA | LPM | mmHG | dB | Cycles | |
| KMP08C-3A | 17.9*8*32.8 | 3.0 | ≤430 | 0.3/0.5 | >350 | <65 dB (A) | 30000 cycles (on7S,off 7S) |
