AIRJET Electromagnetic Pump KDP57C-115A air pump quiet working AC 115V

Name: AIRJET Electromagnetic Pump KDP57C-115A air pump quiet working AC 115V
Brand: AIRJET
SKU: KDP57C-115A
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (105 reviews)

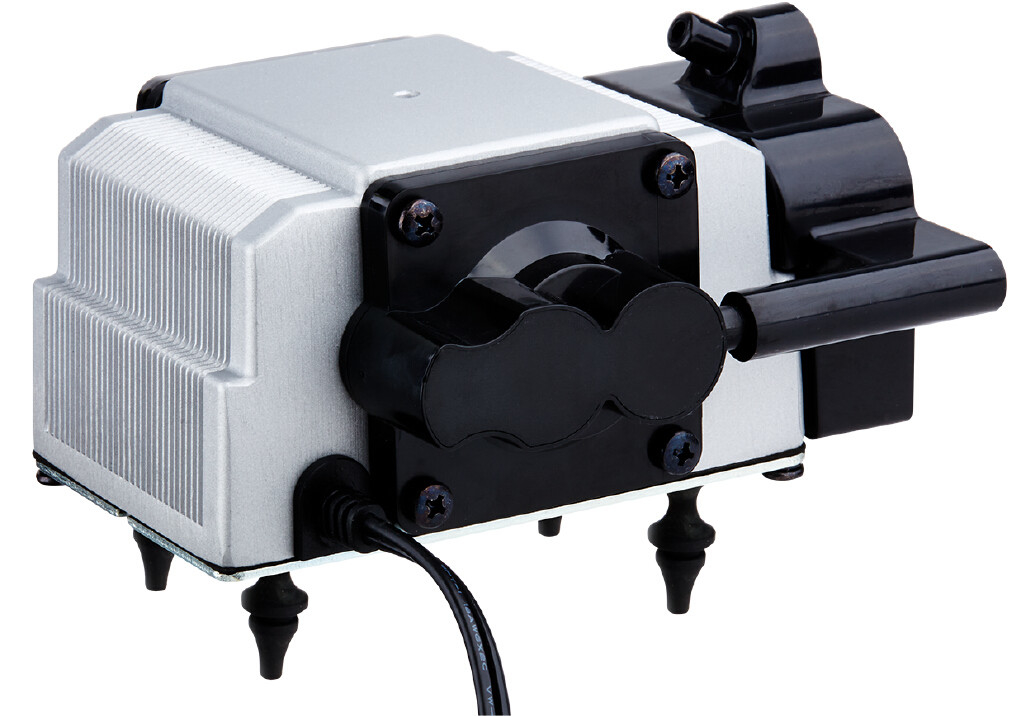

Large Image : AIRJET Electromagnetic Pump KDP57C-115A air pump quiet working AC 115V

Product Details:

Place of Origin:	China
Brand Name:	AIRJET
Certification:	CE, RoHS
Model Number:	KDP57C-115A

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	303025 cm/carton; 15kg
Delivery Time:	10-15days
Payment Terms:	T/T, Western Union, Paypal, Alipay
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Theory:	Vacuum Pump	Structure:	Diaphragm Pump
Usage:	Air Pump	Power:	Electric
Standard Or Nonstandard:	Nonstandard	Fuel:	Electric Power, Solar, Battery
Pressure:	High Pressure	Application:	Vacuum Packaging, Medical, Gas Sampling

AIRJET Electromagnetic Pump KDP57C-115A air pump quiet working AC 115V

Specifications

1. Rated Voltage	AC 21V	AC220V	AC220V	AC120V
2. Rated Current	Max. 1.7mA(50Hz AC21V), Max. 1.7mA, (60Hz AC21V)	Max. 170mA(50Hz) Max. 180mA(60Hz)	Max. 300mA(50Hz) Max. 300mA(60Hz)	Max. 430mA(50Hz) Max. 460mA(60Hz)
3. Resistance	3.8Ω±10%(25°C)	435Ω±10%(25°C)	245Ω±10%(25°C)	77±10%(25°C)
4. Power Consumption	Max. 20 W(50Hz) Max. 15W(60Hz)	Max. 21W(50Hz) Max. 19W(60Hz)	REF 26W(50Hz) REF 20W(60Hz)	REF 25W(50Hz) REF 21W(60Hz)
5. Air Flow Without Load	20L/min(50Hz) 18L/min(60Hz)	23L/min(50Hz) 18L/min (60Hz)	26L/min(50Hz) 20L/min(60Hz)	24L/min(50Hz) 22L/min(60Hz)
6. Max. Pressure	30Kpa±16% (50Hz), 189~261mmHg ; 36Kpa±16% (60Hz), 226~313mmHg	25Kpa(50Hz),187mmHg 31Kpa(60Hz),233mmHg	35±15%Kpa (50Hz), 224~302mmHz; 41±15%Kpa (50Hz), 264~356mmHz	36±15%Kpa (50Hz), 230~310mmHg 40±15%Kpa (60Hz), 255~345mmHg
7. Noise Level	<55dB(50Hz,50cm away)	<55dB(50Hz,50cm away)	<55dB(50Hz,50cm away)	<55dB(50Hz,50cm away)
8. Apply For	Air	Air	Air	Air
9.Insulation Level	E	E	E	E
